• Portable to anywhere you need
• Nitrogen gas filling into the gas springs (gas struts) without compressor machine
• Usable on your desk
• Excellent for service staff
• Saving cost, time and effort
• Stock saving (giving ability to fill gas in-house)
• Quick and Easy
• Applicable almost to all types: valved, compression, tension and blockable type gas springs
• Applicable to (Rod/Tube) 6/15, 8/18/19, 10/21/22/23, 14/27/28
• Capacity Per Day (without valve): 1.000 pcs (used the same type of gas spring for calculation)
• Capacity Per Day (with valve): 1.500 pcs (used the same type of gas spring for calculation)
• Standard gas springs and valve fitted gas springs can be filled gas on the same platform
• Totally safe as there is no need for electricity to fill nitrogen gas into the gas springs (gas struts)

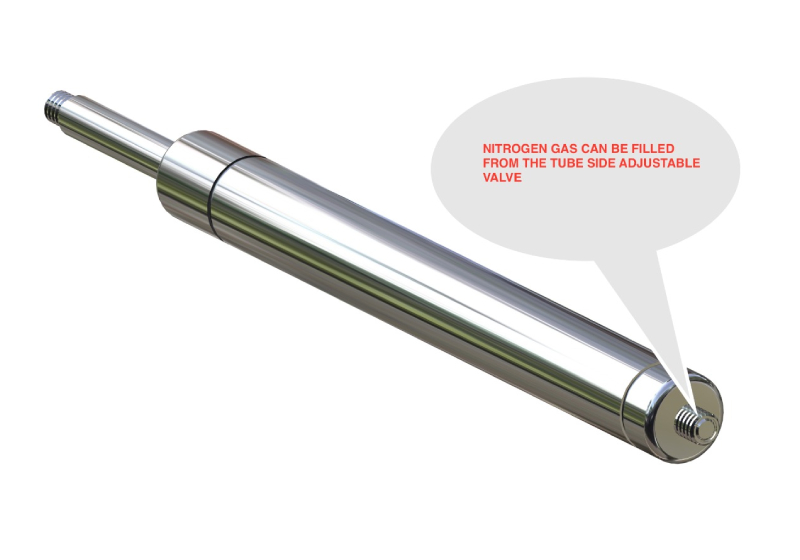

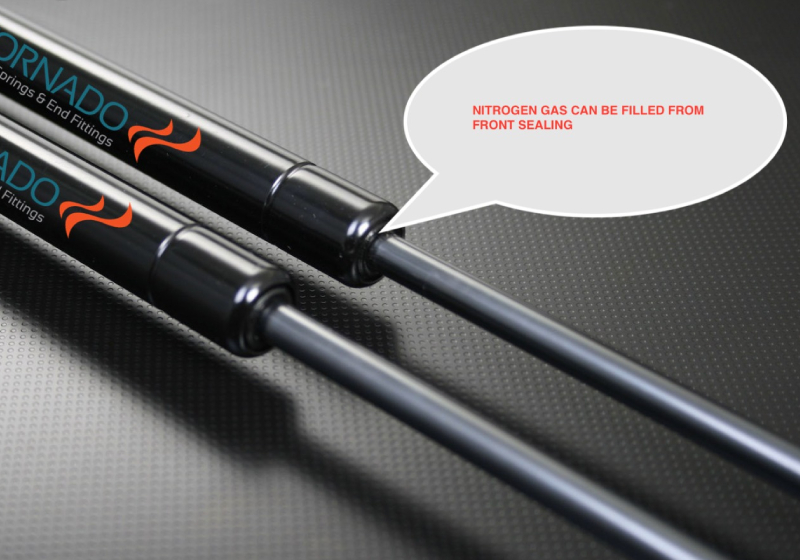

• Can be ordered with filling nitrogen gas from front sealing and/or from adjustable pressure valve in the same machine

With the machine we are sending 8 moulds free of charge which is used to have an isolated room for pressurized nitrogen gas. You can fill lockable gas springs with these moulds as well.

If you use a different size, you need to order additional moulds (charged separately). The mould need to be used to fill gas from front seals.

Mould Sizes

Compression Type Gas Springs

• 4mm/12mm
• 6mm/15mm
• 8mm/18mm
• 10mm/21mm-22mm
• 10mm/27mm-28mm
• 14mm/27mm

Tension (Traction) Type Gas Springs

• 8mm/22mm
• 10mm/27mm-28mm
