Standard Valved Gas Springs
Choose from the list below
Contact Today!
+90 212 671 88 00
Contact Today!
+90 212 671 88 00
Choose from the list below
| Part Number | Stroke | Extended Length | Threads | Force Range | |
|---|---|---|---|---|---|
| VLV615-130-98 | 40 | 130 | M6 | 50-400N | Request a Quote |
| VLV615-150-99 | 50 | 150 | M6 | 50-400N | Request a Quote |
| VLV615-160-100 | 60 | 160 | M6 | 50-400N | Request a Quote |
| VLV615-210-101 | 80 | 210 | M6 | 50-400N | Request a Quote |
| VLV615-250-102 | 100 | 250 | M6 | 50-400N | Request a Quote |
| VLV615-290-103 | 120 | 290 | M6 | 50-400N | Request a Quote |
| VLV615-350-104 | 150 | 350 | M6 | 50-400N | Request a Quote |
| VLV615-450-105 | 200 | 450 | M6 | 50-400N | Request a Quote |
| Part Number | Stroke | Extended Length | Threads | Force Range | |
|---|---|---|---|---|---|
| VLV818-130-106 | 40 | 130 | M6 | 50-800N | Request a Quote |
| VLV818-150-107 | 50 | 150 | M6 | 50-800N | Request a Quote |
| VLV818-170-108 | 60 | 170 | M6 | 50-800N | Request a Quote |
| VLV818-250-109 | 100 | 250 | M6 | 50-800N | Request a Quote |
| VLV818-290-110 | 120 | 290 | M6 | 50-800N | Request a Quote |
| VLV818-350-111 | 150 | 350 | M6 | 50-800N | Request a Quote |
| VLV818-450-112 | 200 | 450 | M6 | 50-800N | Request a Quote |
| VLV818-550-113 | 250 | 550 | M6 | 50-800N | Request a Quote |
| VLV818-650-114 | 300 | 650 | M6 | 50-800N | Request a Quote |

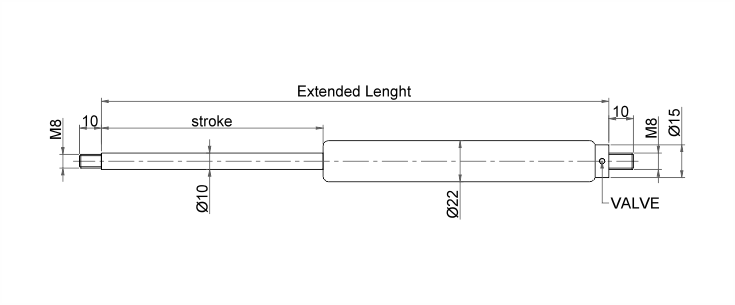

| Part Number | Extended Length | Stroke | Threads | Force Range | |
|---|---|---|---|---|---|
| VLV1022-150-115 | 150 | 50 | M8 | 150-1250N | Request a Quote |
| VLV1022-250-116 | 250 | 100 | M8 | 150-1250N | Request a Quote |
| VLV1022-290-117 | 290 | 120 | M8 | 150-1250N | Request a Quote |
| VLV1022-350-118 | 350 | 150 | M8 | 150-1250N | Request a Quote |
| VLV1022-450-119 | 450 | 200 | M8 | 150-1250N | Request a Quote |
| VLV1022-550-120 | 550 | 250 | M8 | 150-1250N | Request a Quote |
| VLV1022-650-121 | 650 | 300 | M8 | 150-1250N | Request a Quote |
| VLV1022-750-122 | 750 | 350 | M8 | 150-1250N | Request a Quote |
| VLV1022-850-123 | 850 | 400 | M8 | 150-1250N | Request a Quote |
| VLV1022-950-124 | 950 | 450 | M8 | 150-1250N | Request a Quote |
| VLV1022-1050-125 | 1050 | 500 | M8 | 150-1250N | Request a Quote |

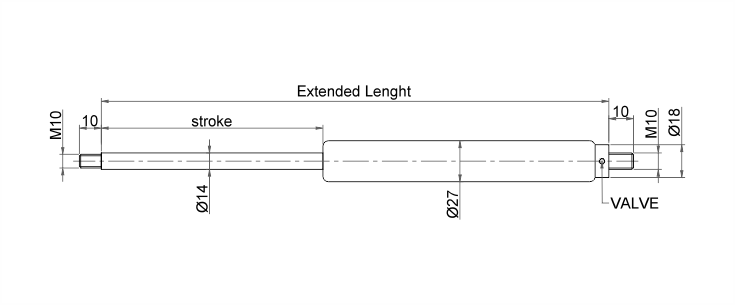

| Part Number | Extended Length | Stroke | Threads | Force Range | |
|---|---|---|---|---|---|
| VLV1427-155-126 | 155 | 50 | M10 | 200-2500N | Request a Quote |
| VLV1427-255-127 | 255 | 100 | M10 | 200-2500N | Request a Quote |
| VLV1427-355-128 | 355 | 150 | M10 | 200-2500N | Request a Quote |
| VLV1427-455-129 | 455 | 200 | M10 | 200-2500N | Request a Quote |
| VLV1427-555-130 | 555 | 250 | M10 | 200-2500N | Request a Quote |
| VLV1427-655-131 | 655 | 300 | M10 | 200-2500N | Request a Quote |
| VLV1427-755-132 | 755 | 350 | M10 | 200-2500N | Request a Quote |
| VLV1427-870-133 | 870 | 400 | M10 | 200-2500N | Request a Quote |
| VLV1427-970-134 | 970 | 450 | M10 | 200-2500N | Request a Quote |
| VLV1427-1070-135 | 1070 | 500 | M10 | 200-2500N | Request a Quote |
