Stainless Standard Valved Gas Springs
Choose from the list below
Contact Today!
+90 212 671 88 00
Contact Today!
+90 212 671 88 00
Choose from the list below

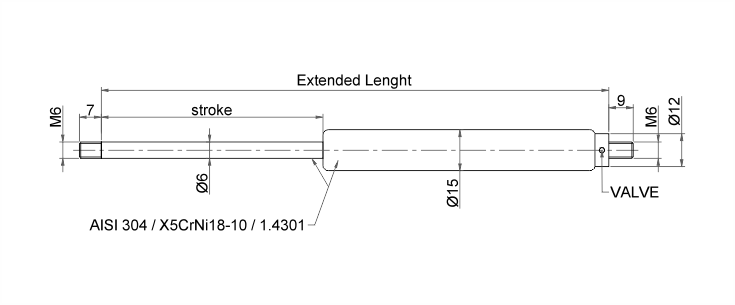

| Part Number | Stroke | Extended Length | Threads | Force Range | |
|---|---|---|---|---|---|
| INXVLV615-130-62 | 40 | 130 | M6 | 50-400N | Request a Quote |
| INXVLV615-150-63 | 50 | 150 | M6 | 50-400N | Request a Quote |
| INXVLV615-160-64 | 60 | 160 | M6 | 50-400N | Request a Quote |
| INXVLV615-210-65 | 80 | 210 | M6 | 50-400N | Request a Quote |
| INXVLV615-250-66 | 100 | 250 | M6 | 50-400N | Request a Quote |
| INXVLV615-290-67 | 120 | 290 | M6 | 50-400N | Request a Quote |
| INXVLV615-350-68 | 150 | 350 | M6 | 50-400N | Request a Quote |
| INXVLV615-450-69 | 200 | 450 | M6 | 50-400N | Request a Quote |
| Part Number | Stroke | Extended Length | Threads | Force Range | |
|---|---|---|---|---|---|
| INXVLV818-130-70 | 40 | 130 | M6 | 50-800N | Request a Quote |
| INXVLV818-150-71 | 50 | 150 | M6 | 50-800N | Request a Quote |
| INXVLV818-170-73 | 60 | 170 | M6 | 50-800N | Request a Quote |
| INXVLV818-250-74 | 100 | 250 | M6 | 50-800N | Request a Quote |
| INXVLV818-290-75 | 120 | 290 | M6 | 50-800N | Request a Quote |
| INXVLV818-350-76 | 150 | 350 | M6 | 50-800N | Request a Quote |
| INXVLV818-450-77 | 200 | 450 | M6 | 50-800N | Request a Quote |
| INXVLV818-550-78 | 250 | 550 | M6 | 50-800N | Request a Quote |
| INXVLV818-650-79 | 300 | 650 | M6 | 50-800N | Request a Quote |
| Part Number | Stroke | Extended Length | Threads | Force Range | |
|---|---|---|---|---|---|
| INXVLV1022-150-80 | 50 | 150 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-250-83 | 100 | 250 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-290-84 | 120 | 290 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-350-85 | 150 | 350 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-450-86 | 200 | 450 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-550-87 | 250 | 550 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-650-88 | 300 | 650 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-750-89 | 350 | 750 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-850-90 | 400 | 850 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-950-91 | 450 | 950 | M8 | 150-1250N | Request a Quote |
| INXVLV1022-1050-92 | 500 | 1050 | M8 | 150-1250N | Request a Quote |

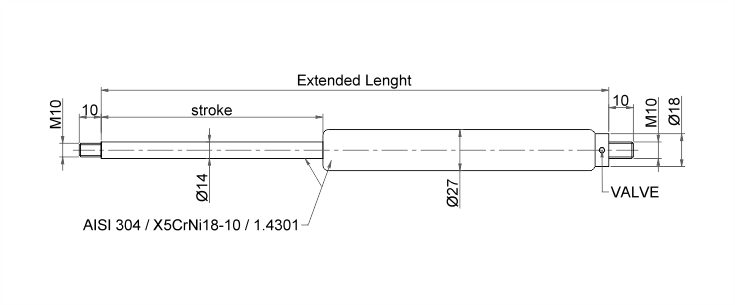

| Part Number | Stroke | Extended Length | Threads | Force Range | |
|---|---|---|---|---|---|
| INXVLV1427-155-93 | 50 | 155 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-255-94 | 100 | 255 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-355-95 | 150 | 355 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-455-96 | 200 | 455 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-555-97 | 250 | 555 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-655-98 | 300 | 655 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-755-99 | 350 | 755 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-870-100 | 400 | 870 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-970-101 | 450 | 970 | M10 | 200-2500N | Request a Quote |
| INXVLV1427-1070-102 | 500 | 1070 | M10 | 200-2500N | Request a Quote |
